Passive Aluminum
Entrance Door
PHI-certified passive entrance door with ultra-low UD value, high security and flush frame design for luxury villas and premium buildings.
PHI
Certified
UD ≤ 0.80
W/㎡·K
High
Security
Flush
Design
Technical Specifications
Product Type
Passive Aluminum Entrance Door
Series
ES110
Profile Thickness
110mm
Thermal Break Strip
64mm Technoform / Polyester
Certification
PHI Certified
Thermal Performance
UD ≤ 0.80 W/㎡·K
Sealing System
Soft-hard Co-extruded Sealing
Design
Flush Frame & Sash Design
Security Hardware
Multi-point Security Locking System
Application
Luxury Villas, Premium Residences, Hotels, High-end Entrances
ES110 System Highlights
ES110
Passive Entrance Door

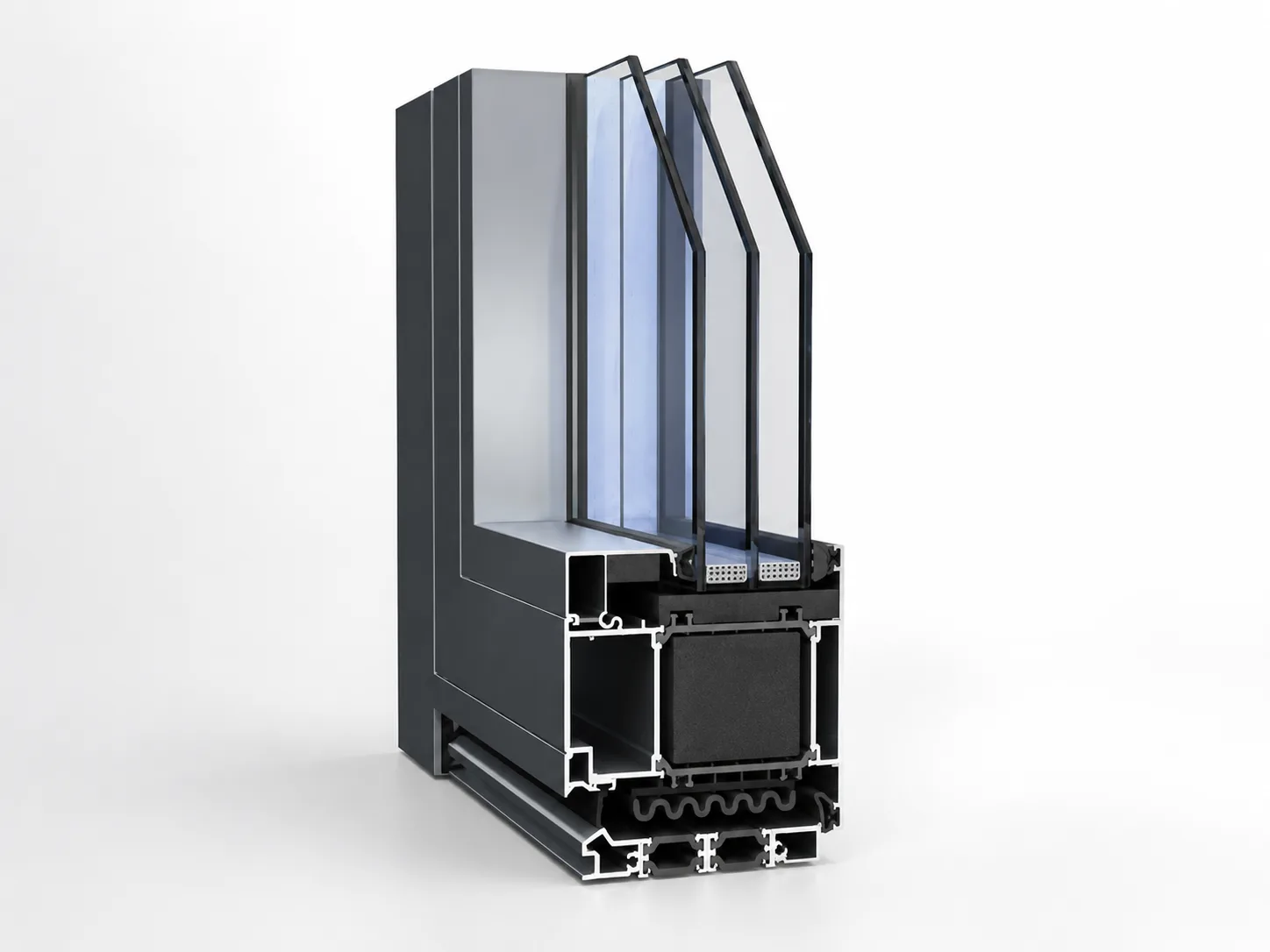

ES110 is a PHI-certified passive entrance door system with 110mm thick profile and 64mm thermal break strip, delivering excellent insulation, air tightness and security performance.
- PHI Certified, UD ≤ 0.80 W/㎡·K
- Thermal Insulation Grade 10
- 64mm Technoform / Polyester Thermal Break Strip
- 110mm Thick Profile
- Soft-hard Co-extruded Sealing
- Flush Frame & Sash Design
- Multi-point Security Locking System
- Excellent Sealing and Weather Resistance
- High-security Entrance Solution
Related systems: Thermal Break Casement Windows · Thermal Break Sliding Doors · Slim Frame Panoramic Windows
Key Features
110mm Strong Profile
Thick aluminum structure for strength and durability.
64mm Thermal Break Strip
Technoform insulation strip reduces heat transfer.
Soft-hard Sealing System
Co-extruded sealing for better airtightness and water tightness.
Flush & Secure Design
Flush frame and sash with high-security structure.
