Thermal Break
Sliding Window System
Space-saving thermal break sliding windows with slim frames and hidden drainage.
Slim
Frame
Space
Saving
Thermal & Dust
Protection
Hidden
Drainage
Technical Specifications
Product Type
Thermal Break Sliding Window System
Series
ES95 / ES115HI
Glass Options
Double / Triple Insulated Glass
Opening Type
Sliding Window
Frame Material
6063-T5 Aluminum Alloy
Drainage Design
Hidden Drainage
Sealing System
EPDM / Co-extruded Sealing Options
Application
Residences, Apartments, Hotels, Commercial Buildings
Available Series
Choose the suitable series according to insulation, sound reduction,sealing requirements and project budget.

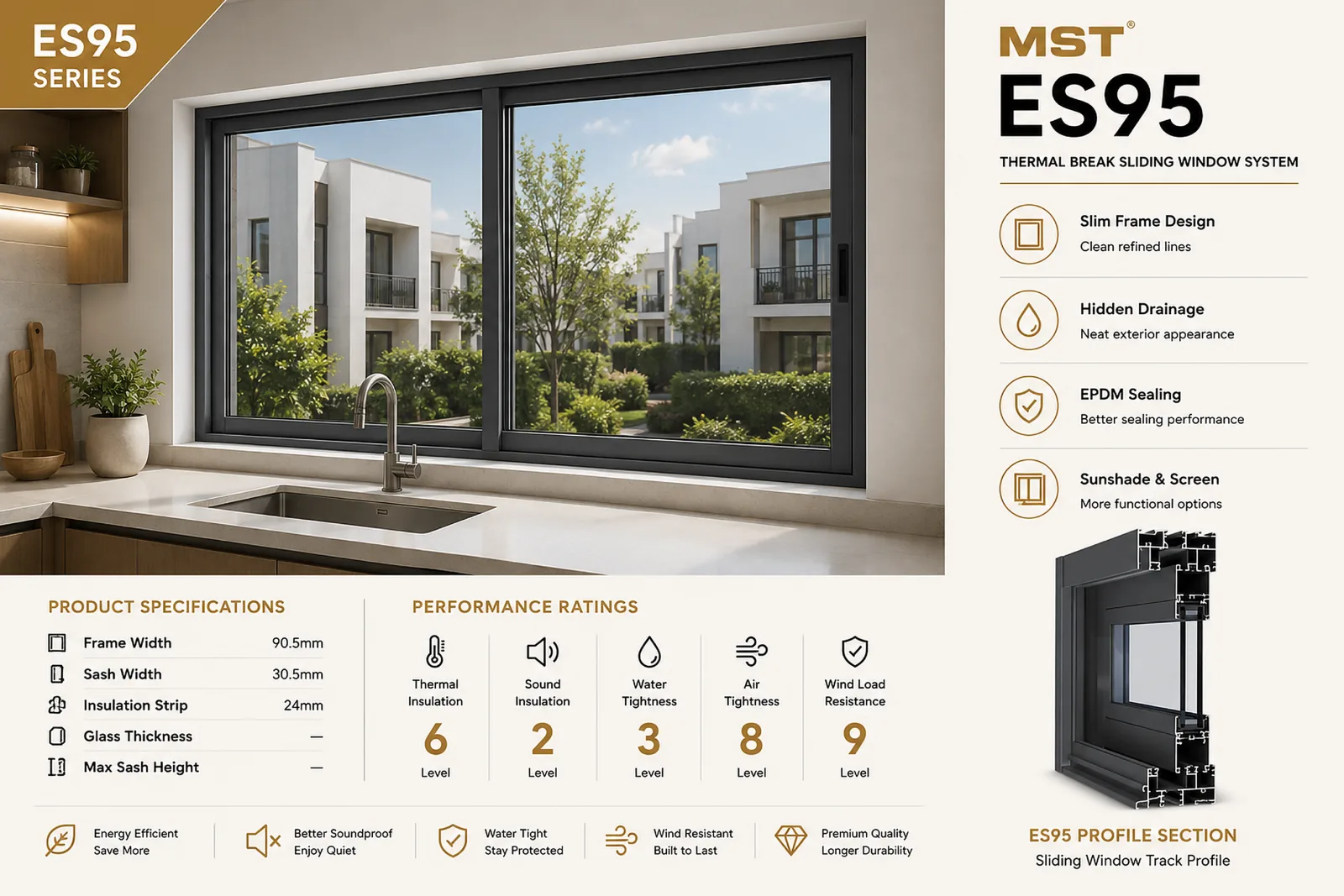

ES95
Sliding Window System
Main sliding window solution with slim frame, hidden drainage and EPDM sealing.
- Slim Frame Design
- Hidden Drainage
- EPDM Sealing

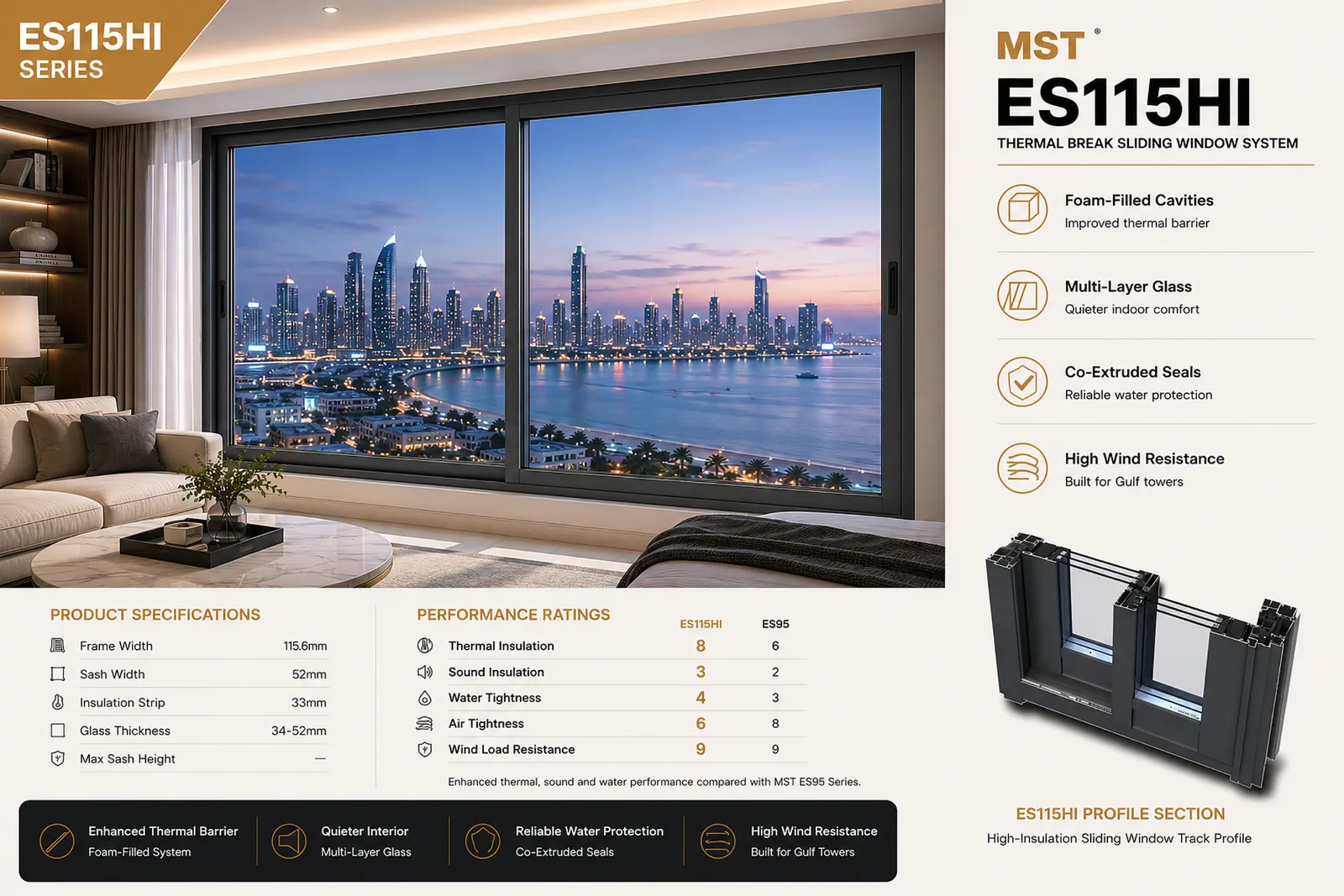

ES115HI High-End
Sliding Window System
Elite Sliding System: Maximum insulation, acoustics, and watertightness via foam-filled profiles and multi-layer glass.
- Thermal Insulation Grade 8
- Multi-layer Insulated Glass
- Co-extruded Sealing
Related systems: Thermal Break Casement Windows · Slim Frame Panoramic Windows · Thermal Break Sliding Doors
Series Comparison
Item
ES95 Sliding Window System
ES115HI High-End Sliding Window System
Positioning
Main Series
Premium Series
Thermal Insulation
Grade 6
Grade 8
Sound Insulation
Grade 2
Grade 3
Water Tightness
Grade 3
Grade 4
Air Tightness
Grade 8
Grade 6
Wind Pressure Resistance
Grade 9
Grade 9
Best For
Residences, apartments
Villas, hotels, high-end projects
Series Comparison
Positioning
ES95: Main Series
ES115HI: Premium Series
Thermal Insulation
ES95: Grade 6
ES115HI: Grade 8
Sound Insulation
ES95: Grade 2
ES115HI: Grade 3
Water Tightness
ES95: Grade 3
ES115HI: Grade 4
Air Tightness
ES95: Grade 8
ES115HI: Grade 6
Wind Pressure Resistance
